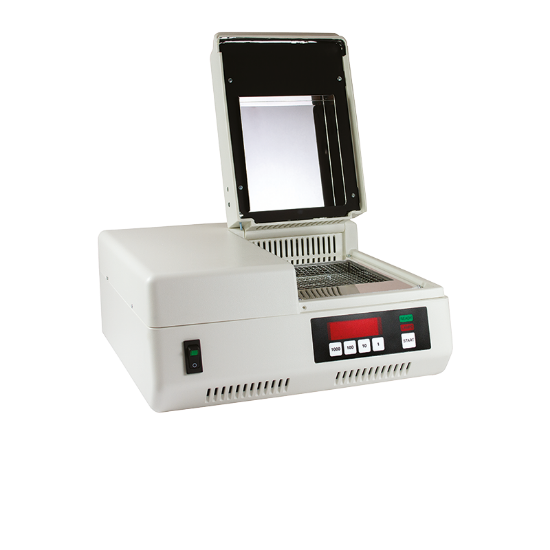

Otoflash G171 with protective gas function, 100 - 230 V, incl. plexiglas tray with UVB blocker (360N2) + accessories for N2 gas connection

Flash light device for the fast and safe curing of light-curing resins. At the same time, molds which were manufactured with the 3D evolupt manufacturing technologies can be post-polymerized.It disposes of two flash bulbs at the bottom flashing the polymerization chamber. The device is applicable for the polymerization of all light-curing materials curing in a wave-length range of 280-580 nm and equipped with a protective gas function. Thus, oxygen inhibition is avoided, surfaces cure completely tack-free and removing/cleaning of the inhibition layer is unnecessary. The Otoflash G171 enables manufacturing and processing of light-curing raw materials of diverse consistency and pigmentation as well as repair works with relevant materials and lacquering. With its technical equipment, Otoflash G171 reaches short curing times: two bottom flash bulbs generate 10 flashes per second in working mode. The respective light beam within a wave-length range of 280-580 nm is very intensive. In comparison to other devices, an essentially improved curing of materials can be reached showing very good physical characteristics and a reduced residual monomer concentration (inhibition layer). Otoflash G171 disposes of an integrated operating hour counter, is easy to handle and extremely maintenance-friendly.
The device is also switchable to a different operating voltage (100, 115, 230 Volt AC).

Technical data:
Size of polymerization chamber: 120 x 120 x 50mm
Number of light sources: 2 flash bulbs with 100 W each
Intake capacity: 4 BTE or 6 ITE earmolds
Nominal voltage: 100, 115, 230 Volt AC, reversible
Nominal frequency: 50/ 60 Hz
Power consumption: 250 Watt
Spectral distribution: 280-700 nm, max. 400-500 nm
Averaged over time, flash light performance: 200 Watt
Flash frequency: 10 flashes per second
Protective gas function: Nitrogen N2
Digital timer: adjustable from 1 to 9,999 flashes
Dimensions: approx. 310 x 310 x 140 mm
Weight: 7 kg

The pressure reducer set consists of:
- Filter pressure reducer
- Connection coupling
- Tube (3m)

The coupling nut to connect to a gas bottle has a right hand thread in size W24,32 x 1/14 inch RH.
